Most teams skip the diagram and pay for it later. According to the Nielsen Norman Group, a clear flowchart exposes gaps in a design before a single pixel gets pushed. That's the whole point of user flow mapping. You catch the dead ends on a whiteboard, not in a support ticket three months after launch.
This guide covers notation you can actually keep consistent, the three tools worth your time, and two worked examples from checkout and onboarding. No theory dumps. Just what I use on real projects.
User Flow vs Task Flow vs Journey Map
These three get confused constantly, and using the wrong one wastes a whole afternoon. A user flow maps clicks and decisions through a product, branches included. A task flow is the stripped-down single path with no branching. A journey map zooms way out to emotions and channels across days.
Here's the quick test I use. Does your diagram need a decision point? Then it's a user flow. One straight line of steps? Task flow. Tracking how someone feels on Tuesday versus Friday? Journey map.
- User flow: screens plus decision diamonds, shows alternate paths
- Task flow: one happy path, great for spec handoff
- Journey map: emotion and touchpoints over time, not clicks
I once watched a team spend two days building an elaborate journey map when all they needed was a 9-box task flow for a password reset. Pick wrong and you'll feel it.
What Notation Should You Use?

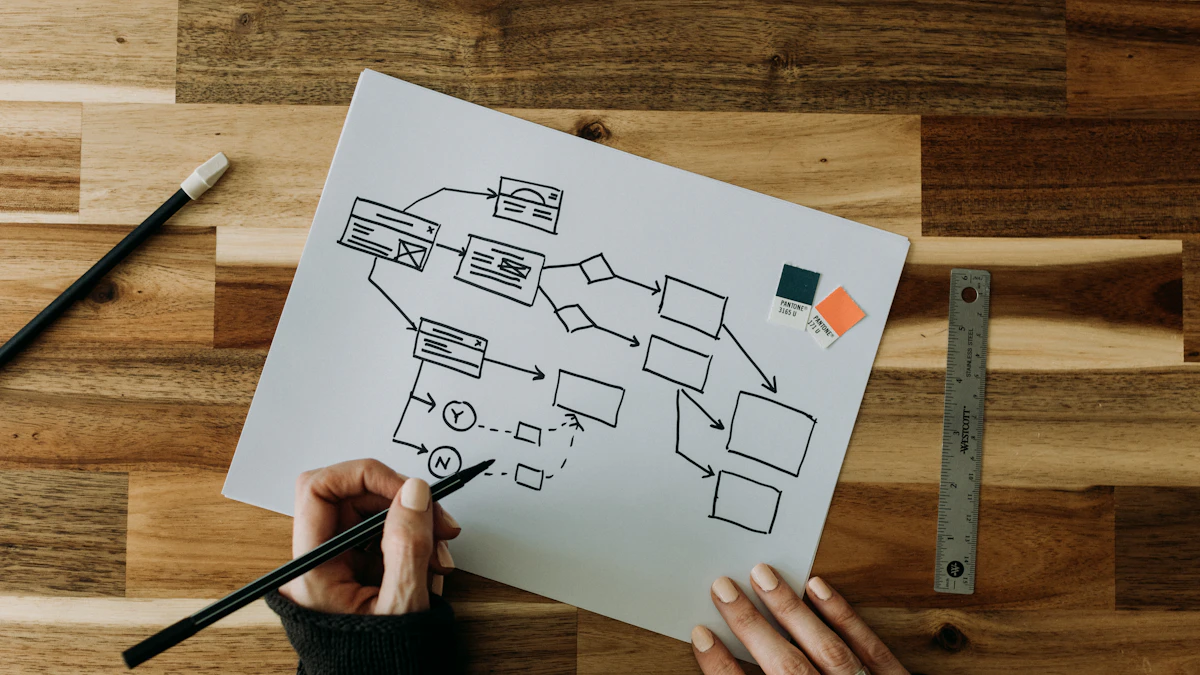

Stick to four shapes and your flows stay readable forever. The convention most designers borrow comes from flowchart standards: rounded rectangles for screens or pages, diamonds for decisions, plain rectangles for actions, and small circles for start and end points. That's it. Four shapes covers maybe 95 percent of what you'll draw.
Arrows carry the logic. Label every arrow leaving a diamond, because an unlabeled "Yes" branch is how ambiguity sneaks in. I color-code too: green for the happy path, red for errors, gray for skippable steps. It makes a 30-node board scannable in seconds.
Common Notation Mistakes
The biggest one? Mixing zoom levels. If one box says "Browse catalog" and the next says "Tap the blue Add button," your reader loses the thread. Keep all boxes at the same altitude. Another trap is the orphan node with no exit arrow. Every box except the end circle needs somewhere to go.
Which Tools Actually Work?
Three tools dominate, and they're all good. FigJam is my default because it sits beside Figma, so flow and final screens share one file. Whimsical draws the cleanest auto-connecting flowcharts I've used, snapping arrows in a way that saves real minutes. Miro wins for big cross-team workshops where 12 people comment at once.
Pricing matters here. FigJam and Miro both ship free tiers that handle solo work, while Whimsical caps free boards at a small number. Don't buy a fourth tool. Use whatever your team already pays for.
- FigJam: best when paired with Figma design files
- Whimsical: fastest for dense, connector-heavy diagrams
- Miro: best for multi-stakeholder remote sessions
A Worked Checkout Example
Checkout flows leak money, and the data backs it up. The Baymard Institute puts the average documented cart abandonment rate around 70 percent, much of it caused by clumsy checkout structure. Mapping the flow first is the cheapest fix you'll ever make.
Start with a start circle at "Cart." Branch on a decision diamond: returning user or guest? The guest path needs an email step the returning path skips. Add a payment diamond: saved card versus new card. Then a validation diamond for the CVV and address. Each "fail" arrow loops back in red, not forward.
Here's the gap this catches every time. Teams forget the "address validation failed" loop and ship a checkout that silently drops people. I've redrawn this exact flow for two clients, and both had no error path drawn at all.
A SaaS Onboarding Example
Onboarding is where flows earn their keep, because the branching gets brutal fast. A signup splits immediately: verified email versus pending. Then comes the empty-state decision: does the user have data to show, or do you need a sample dataset and an empty-state screen?
I map three lanes side by side. Top lane is the happy path to first value. Middle lane handles skipped steps, since people will skip your tour. Bottom lane catches errors and timeouts. One onboarding board I built grew to 40 nodes, and splitting it into linked sub-flows per frame kept it sane.
Want my honest opinion? Most onboarding fails because nobody drew the "user skipped everything" lane. That lane is your real product.
Putting It to Work
User flow mapping isn't busywork, it's the cheapest insurance in design. Four shapes, consistent zoom level, labeled branches, and one tool your team already owns. Draw the error paths first, because that's where products quietly break. Start with a checkout or onboarding flow this week and watch how many gaps surface before you touch a real screen.
